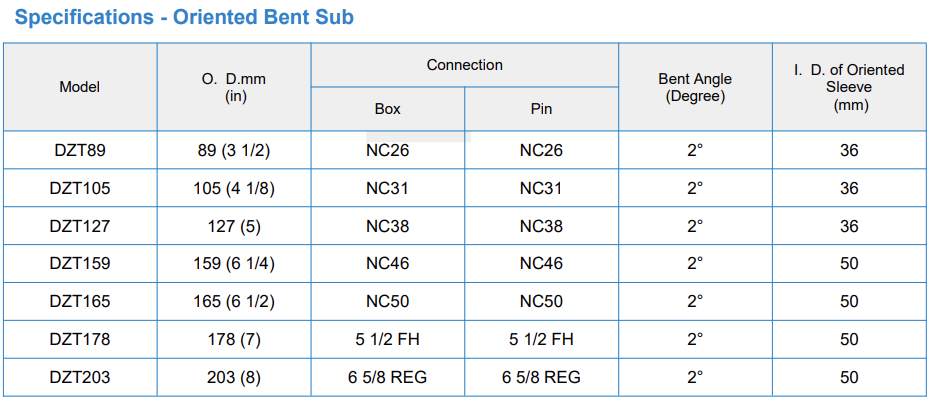

Oriented Bent Sub
The oriented bent sub is a major power deflection tool having a fixed angle deviated from the low end thread of the bent sub to the axial line of drill stem. Under the application of oriented bent sub the power drill tool give the bit a constant lateral force to ensure that the bit can cut on the well wall laterally and further drill into a curved well trace.
Related products
Tianhe Downhole motor design d on the most advanced international design technology. We have a Closely cooperating with domestic, surgical research institutes, universities and oilfield drilling companies, and through careful research and development of R & D center in Canada, the design of technical parameters and structure can meet the most demanding oil drilling needs. Tianhe downhole motor is designed for durability and longer service life for different use conditions, with the most stringent specific tolerances for design and manufacturing standards.
The common drill pipe is a rod that connects the drill bit, delivers the drilling fluid and transmits the power in the drilling tool. Our common drill pipe conforms to SY/T5561 and API Spec5DP standards. In order to reduce the wear of the casing and drill pipe, we can weld the wear belt at the end of the drill pipe female buckle joint. Our company has obtained the production and use license of ARNCO 100XT, ARNCO 150XT, ARNCO 300XT and ARNCO 350XT authorized by the American Anke company.
The agitator can improve the effectiveness of bit weight transfer and reduce the friction between drilling tool and borehole through the longitudinal vibration produced by the hydraulic action of drilling fluid, especially in the process of directional drilling to improve the bit weight transfer and reduce torsional vibration. It is a downhole tool used to solve downhole depressurization and improve weight on bit transfer. Smooth weight on bit transfer improves the ability to adjust the bit toolface to reach further target zones. It does not require too much work to adjust the tool face during drilling, keeping the tool face stable and increasing ROP. Particularly suited for horizontal, extended-reach Wells, it can be used in conjunction with MWD, screw, and any bit.
Operation method
● After the bit and oriented sub are connected and screwed, measuring of the angle between the nozzle of bit and oriented key of oriented bent sub shall be done;
● After run in drill tool, calculate out the azimuth of nozzle of bit according to the azimuth of oriented key determined at a single point by drift indicator;
● Change the nozzle of the bit into required azimuth, then lock in rotary and start pump drilling to cut in;
● During deflecting, using this approach that deflects while lightly pressing and crowning the drill to help deflection; ● After deflected for 2 to 3 meters, drill in 4 to 5 meters with light pressure and slow rotation;
● Repeat above mentioned operations for several times, when the angle of deviation is up to the expected requirement deflecting in can be done smoothly by reducing drill pressure and increasing rotation speed.
